Dermalab Single
Be the expert in your one skin parameter of interest. To achieve this, you only need one powerful instrument.
Whether you are a leading skin researcher or you are serving clients in your aesthetics clinic, this is the workhorse you can trust.
The DermaLab Single is the highly accredited skin measurement standard for professionals who have one specific skin measuring need. From a large variety of essential skin parameters, you choose the one you need.
The instrument delivers scientific and objective measurements, which not only supports and confirms skin research, but also enables evidence-based dermatological advice and treatments in aesthetic clinics.
The DermaLab Single is available with well-known parameters for measuring TEWL, elasticity, and hydration.
It is also available with the 10 MHz and 20 MHz high resolution ultrasound probes. The 20 MHz measures skin thickness as well as skin structure, while the 10 MHz visualizes subcutaneous layers and structures with a maximum of 40 mm penetration.
The DermaLab Single is delivered complete with probe, main unit, and software that connects to laptops or tablets running Windows.
Further below you can see the probes that are available as parameters for the DermaLab Single.

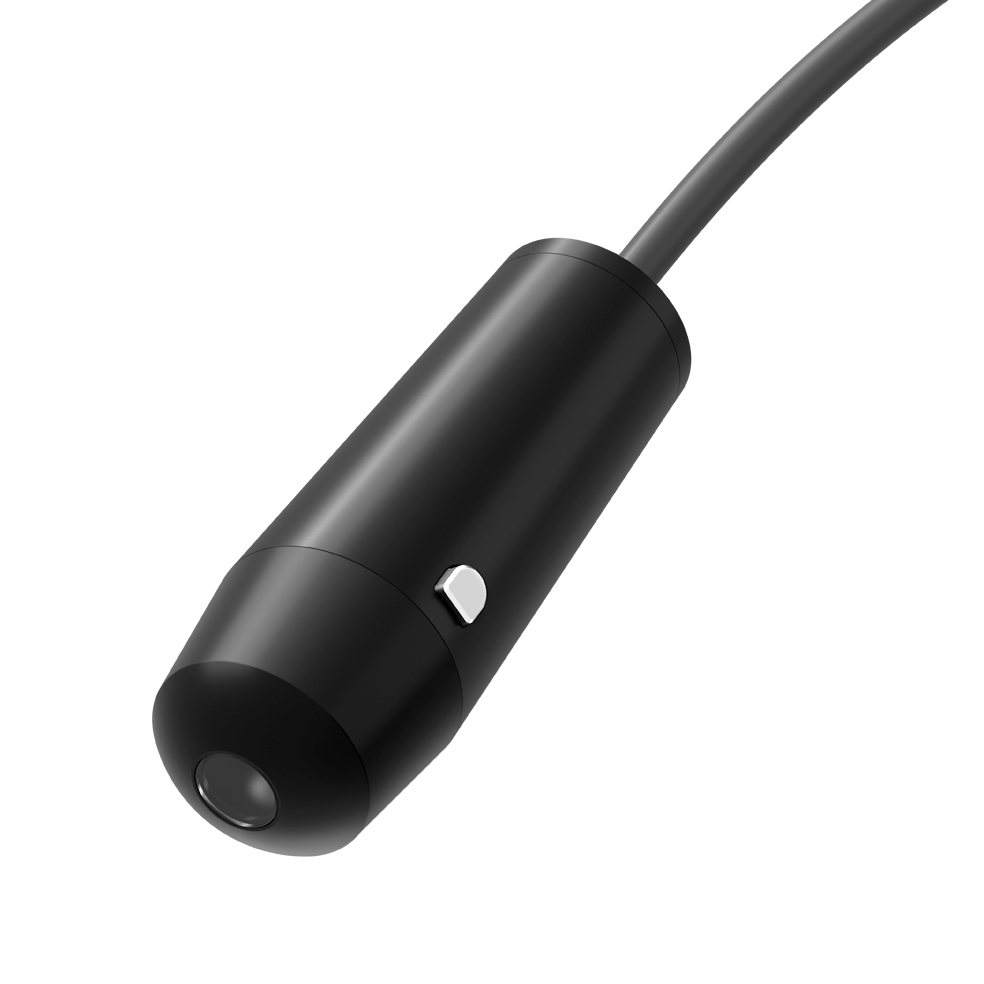

Ultrasound Standard Probe
Ultra-high frequency ultrasound probe - for measurements of collagen and dermal thickness

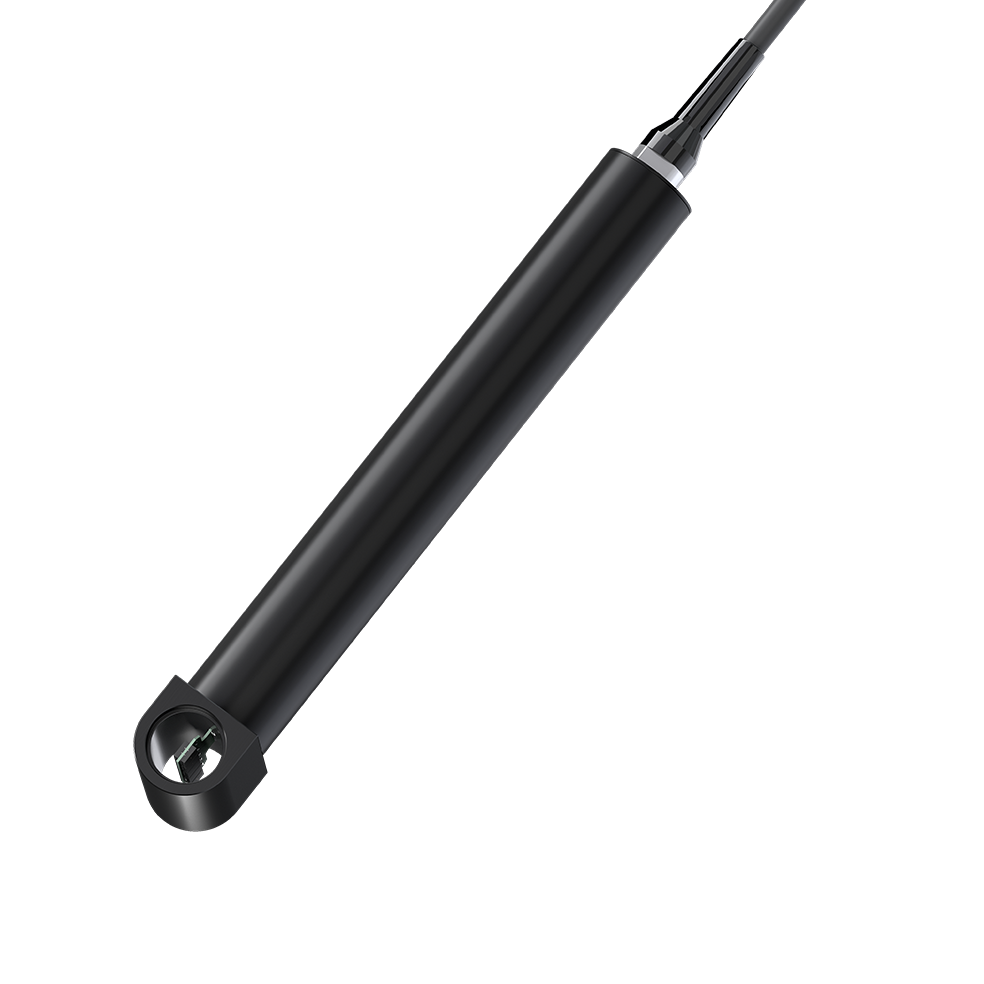

TEWL Probe
Measurement for assessing the barrier function of skin

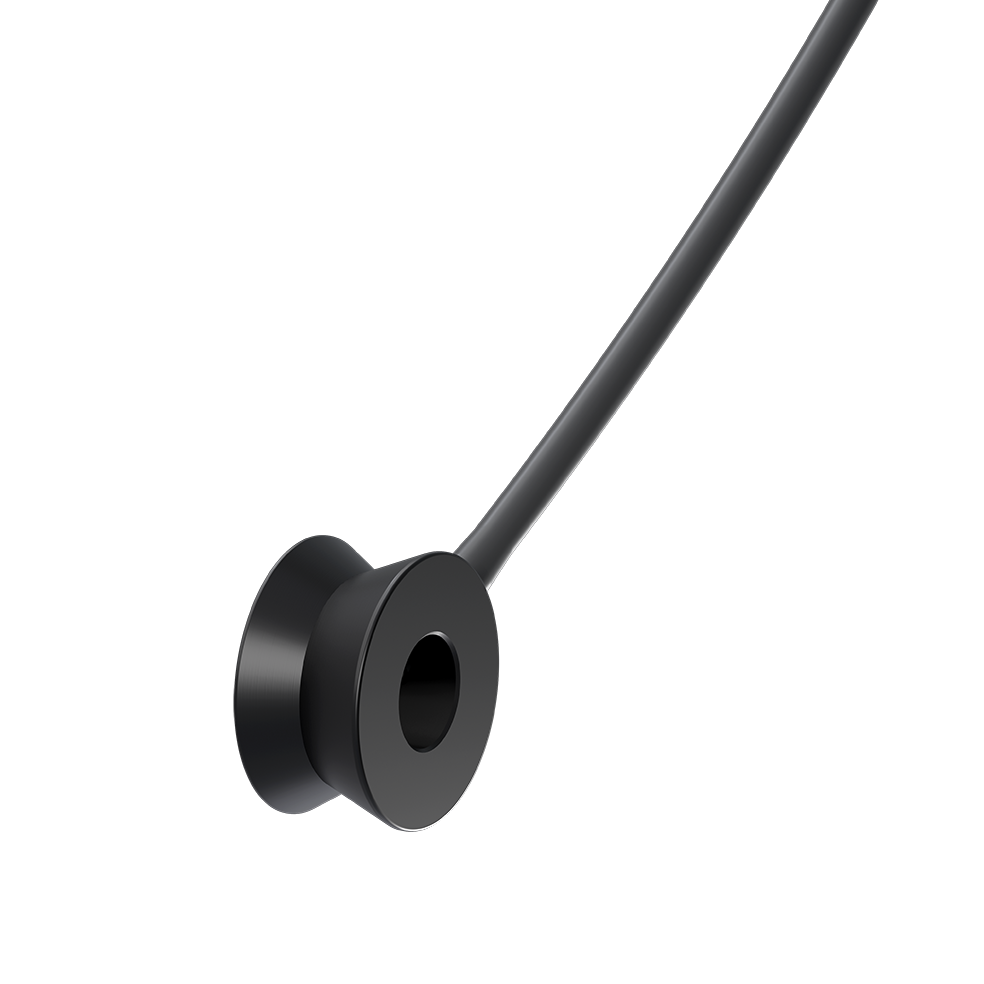

Elasticity Probe
Measurement of skin elevation and subsequent retraction time

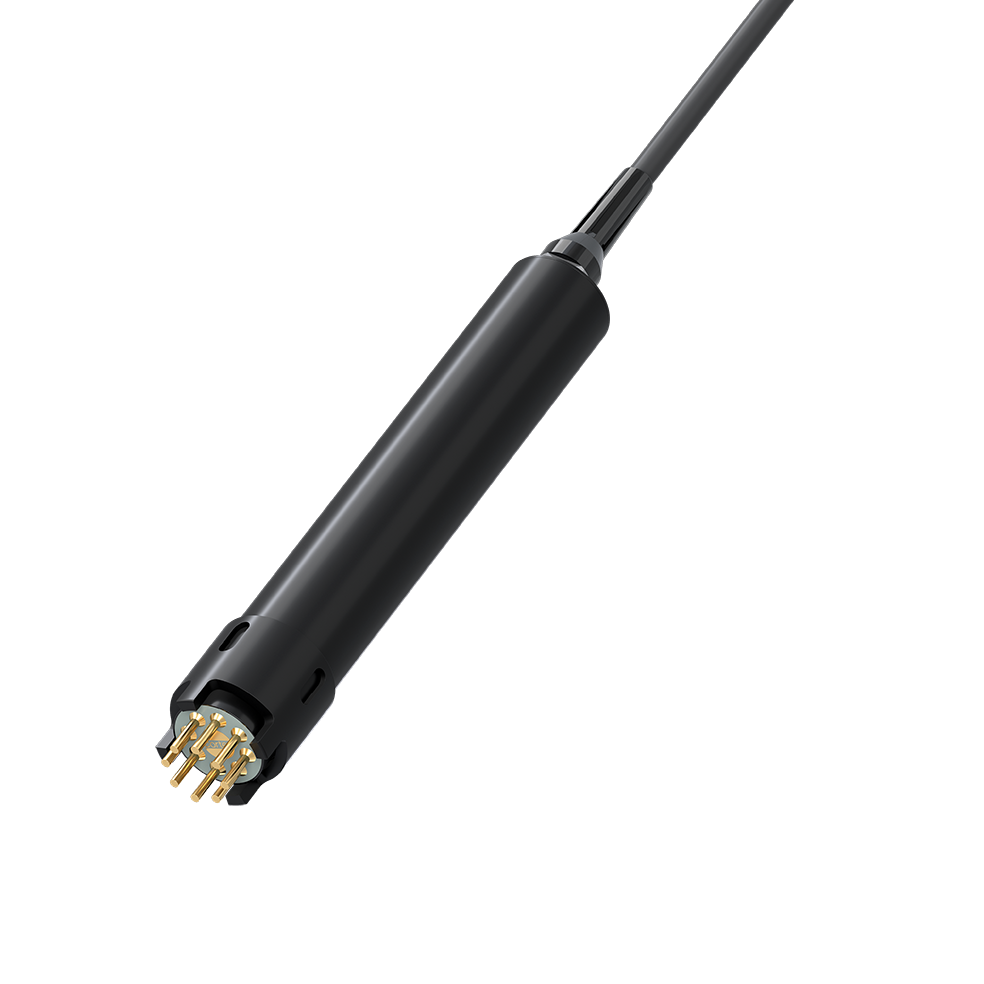

Hydration Pin Probe
The most popular choice for measurement of the water binding capacity

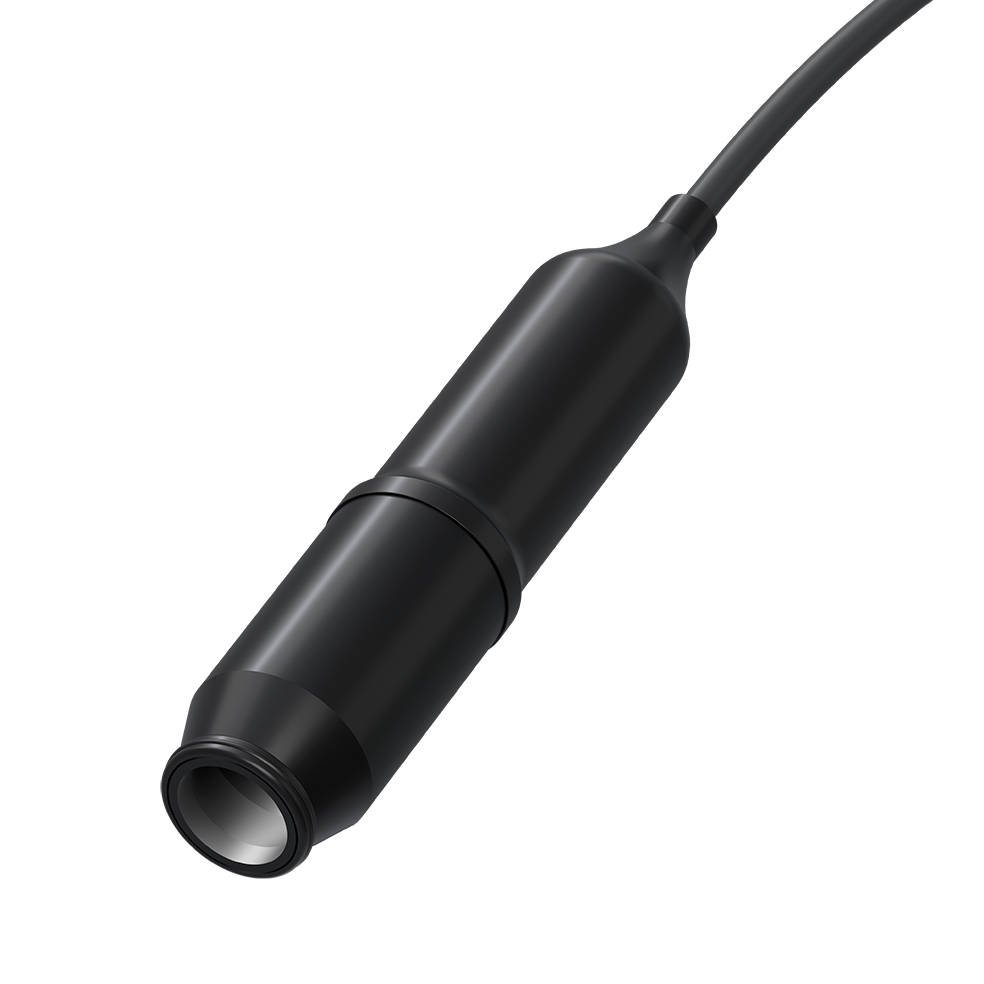

Ultrasound Subcutaneous Probe
Ultra-high frequency ultrasound probe - for subcutaneous measurements of fat level

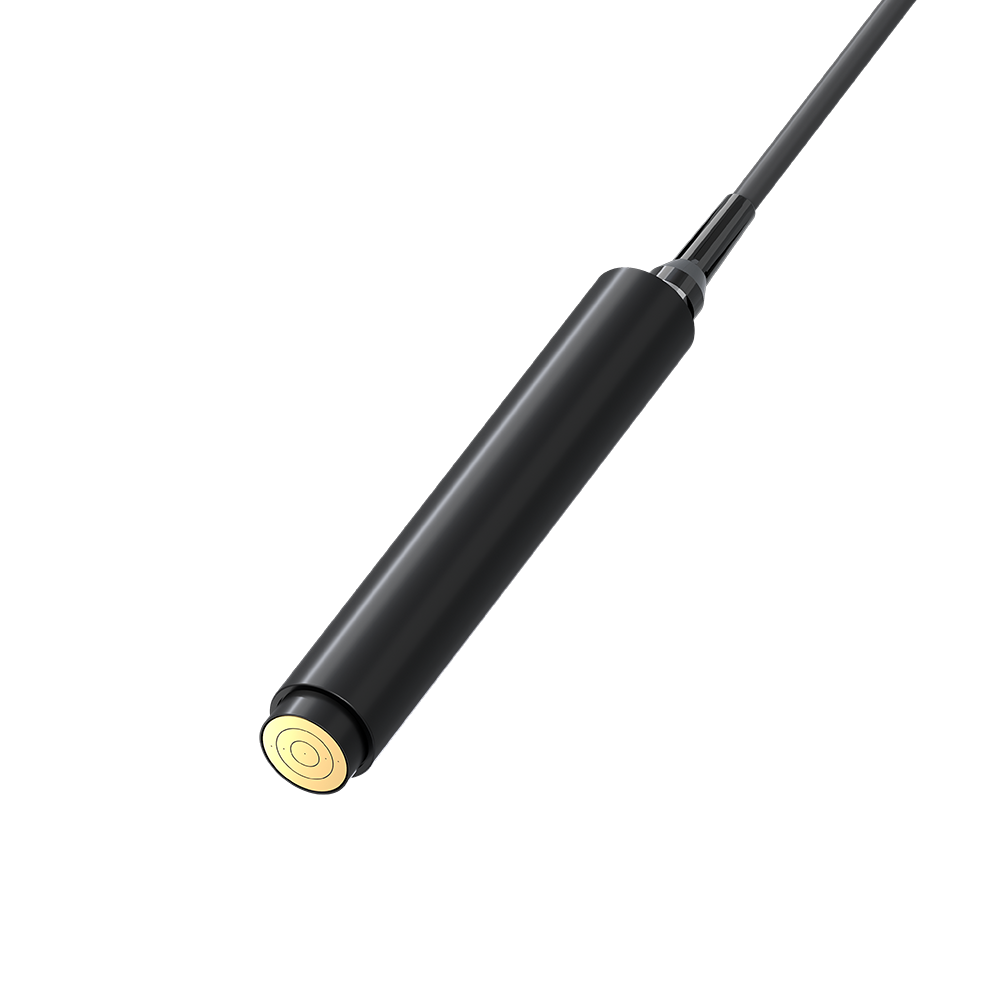

Hydration Flat Probe
Measurement of water binding capacity
Software photos
Dimensions: | 188 (L) x 124 (W) x 89 (H) mm |
Power requirement: | External 12 V power supply (included) |
Connectivity | USB connected single probe interface |
Misc.: | Integrated probe holder |
Warranty: | 1 year. Extended upgrade and warranty program available. |
Get more information, book a demonstration, or request prices. Do not hesitate to contact us, we would love to hear from you.
